SQL OUTER JOINs: LEFT, RIGHT, and FULL with Worked Examples

An INNER JOIN drops employees without departments and departments without employees. LEFT preserves every row from the left table, RIGHT every row from the right table, and FULL unmatched rows from both. Missing partners become SQL NULL, and moving a predicate between ON and WHERE can change which rows survive.

Related reading: inner and outer joins and SQL joins.

OUTER JOIN meaning and the three preserved-side choices

Use one rule: the join condition finds matches, while the join type decides which unmatched rows survive.

OUTER is optional: LEFT JOIN and LEFT OUTER JOIN mean the same operation. Left and right refer to query positions, not business importance; reversing table order reverses them. Therefore, equivalent conditions make employees LEFT JOIN departments and departments RIGHT JOIN employees preserve the employee side.

Joins sit inside DBMS in the CS Fundamentals learning path. Join Operations in DBMS: Inner, Left, Right and Full Outer Joins Worked Step by Step develops conceptual pair-counting, relational-algebra symbols, and duplicate-key cardinality. Executable queries are the complementary route for tracing exact LEFT, RIGHT, FULL, and filter-placement outputs.

Build the exact employees and departments dataset

Run this setup. It omits a foreign key to focus on join behaviour; the unmatched employee deliberately has NULL as the department reference.

CREATE TABLE departments (
    department_id   INT PRIMARY KEY,
    department_name VARCHAR(30) NOT NULL
);

CREATE TABLE employees (
    employee_id   INT PRIMARY KEY,
    employee_name VARCHAR(30) NOT NULL,
    department_id INT
);

INSERT INTO departments (department_id, department_name) VALUES
    (10, 'Engineering'),
    (20, 'Sales'),
    (30, 'HR'),
    (40, 'Legal');

INSERT INTO employees (employee_id, employee_name, department_id) VALUES
    (101, 'Asha',   10),
    (102, 'Bharat', 20),
    (103, 'Charu',  10),
    (104, 'Dev',  NULL),
    (105, 'Esha',   30);

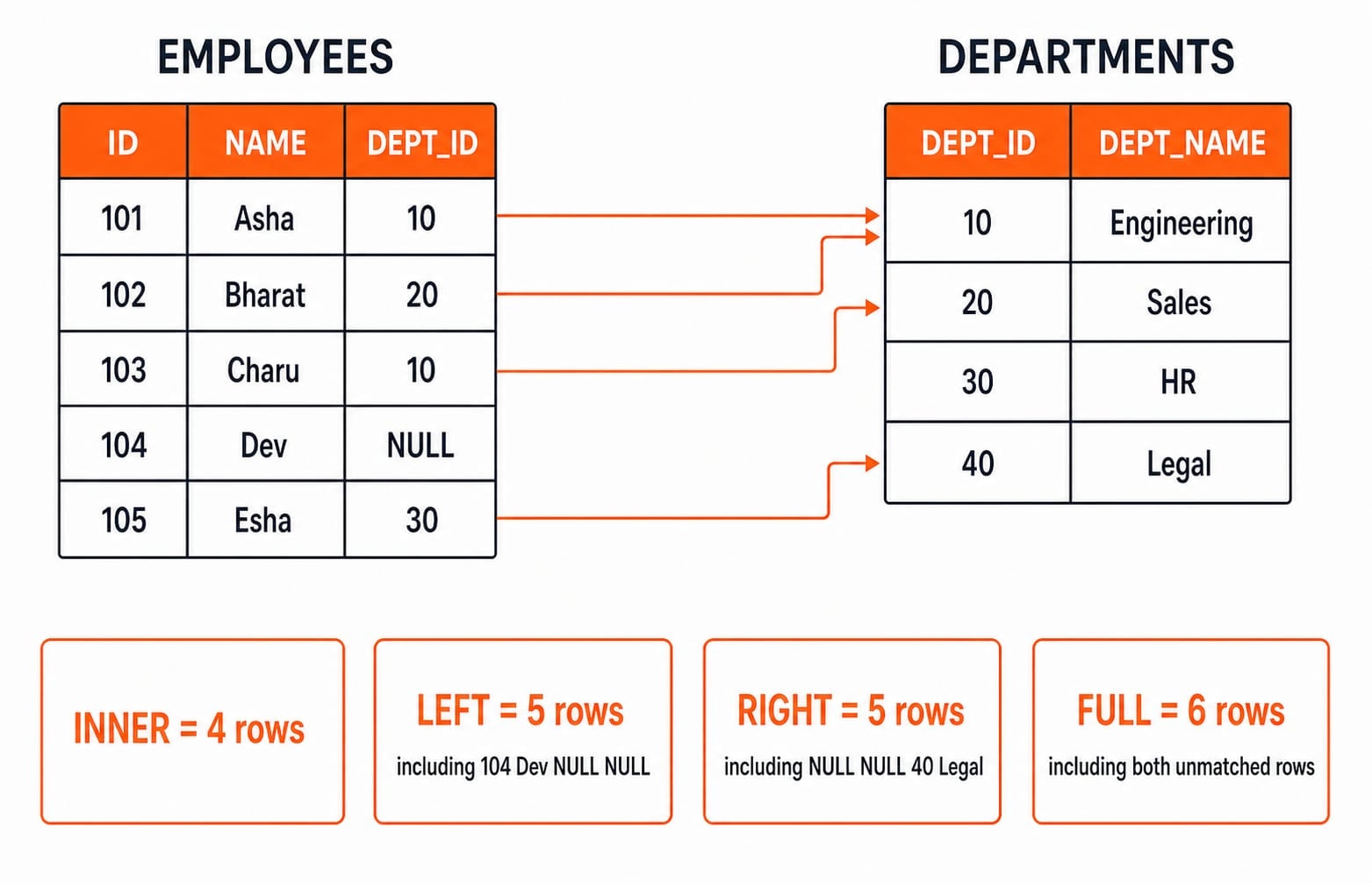

Matches are Asha 10 to Engineering, Bharat 20 to Sales, Charu 10 to Engineering, and Esha 30 to HR. Dev has no department; Legal 40 has no employee. Engineering matches two employees because joins return row combinations, not one row per department.

Result order is not guaranteed without ORDER BY, so every displayed query requests one. Here NULL means a missing join partner, not the text 'NULL' or zero.

Use INNER JOIN as the matched-row baseline

SELECT e.employee_id, e.employee_name,
       d.department_id, d.department_name
FROM employees AS e
INNER JOIN departments AS d
    ON e.department_id = d.department_id
ORDER BY e.employee_id;

Trace Charu: employee 103 carries department ID 10, matches the Engineering key 10, and produces one combined row. Dev disappears because NULL does not satisfy equality. Legal disappears because no employee carries 40. The baseline is four matched employee-department combinations, although the sources contain five employees and four departments.

LEFT OUTER JOIN preserves every employee

SELECT e.employee_id, e.employee_name,
       d.department_id, d.department_name
FROM employees AS e
LEFT OUTER JOIN departments AS d
    ON e.department_id = d.department_id
ORDER BY e.employee_id;

Asha, Bharat, Charu, and Esha emit matched rows. Dev has no match, but LEFT preserves employee 104, so all selected department columns become NULL. This answers, "Show every employee, with department details when available." It does not invent a department for Dev. Add WHERE d.department_id IS NULL to return only 104 | Dev.

RIGHT and FULL OUTER JOINs on the same values

The right-preserving form returns five rows in department order:

SELECT e.employee_id, e.employee_name,
       d.department_id, d.department_name
FROM employees AS e
RIGHT OUTER JOIN departments AS d
    ON e.department_id = d.department_id
ORDER BY d.department_id, e.employee_id;

Legal survives because departments is on the right. Dev does not because the employee side is not preserved. An equivalent and often clearer rewrite is:

SELECT e.employee_id, e.employee_name,
       d.department_id, d.department_name
FROM departments AS d
LEFT JOIN employees AS e
    ON e.department_id = d.department_id
ORDER BY d.department_id, e.employee_id;

Now preserve both sides:

SELECT e.employee_id, e.employee_name,
       d.department_id, d.department_name
FROM employees AS e
FULL OUTER JOIN departments AS d
    ON e.department_id = d.department_id
ORDER BY CASE WHEN e.employee_id IS NULL THEN 1 ELSE 0 END,
         e.employee_id;

The exact rows are 101 | Asha | 10 | Engineering, 102 | Bharat | 20 | Sales, 103 | Charu | 10 | Engineering, 104 | Dev | NULL | NULL, 105 | Esha | 30 | HR, and NULL | NULL | 40 | Legal. The count is four matched combinations + one left-only row + one right-only row = six. It is not 5 + 4, because that would count matched combinations twice.

Support for RIGHT and FULL OUTER JOIN varies by database and version, so check the current documentation for your engine. If FULL is unavailable, combine every employees LEFT JOIN departments row with UNION ALL and only the anti-matched rows from departments LEFT JOIN employees WHERE e.employee_id IS NULL. The filter prevents the four matched combinations from appearing twice.

The ON versus WHERE trap, NULLs, and duplicate matches

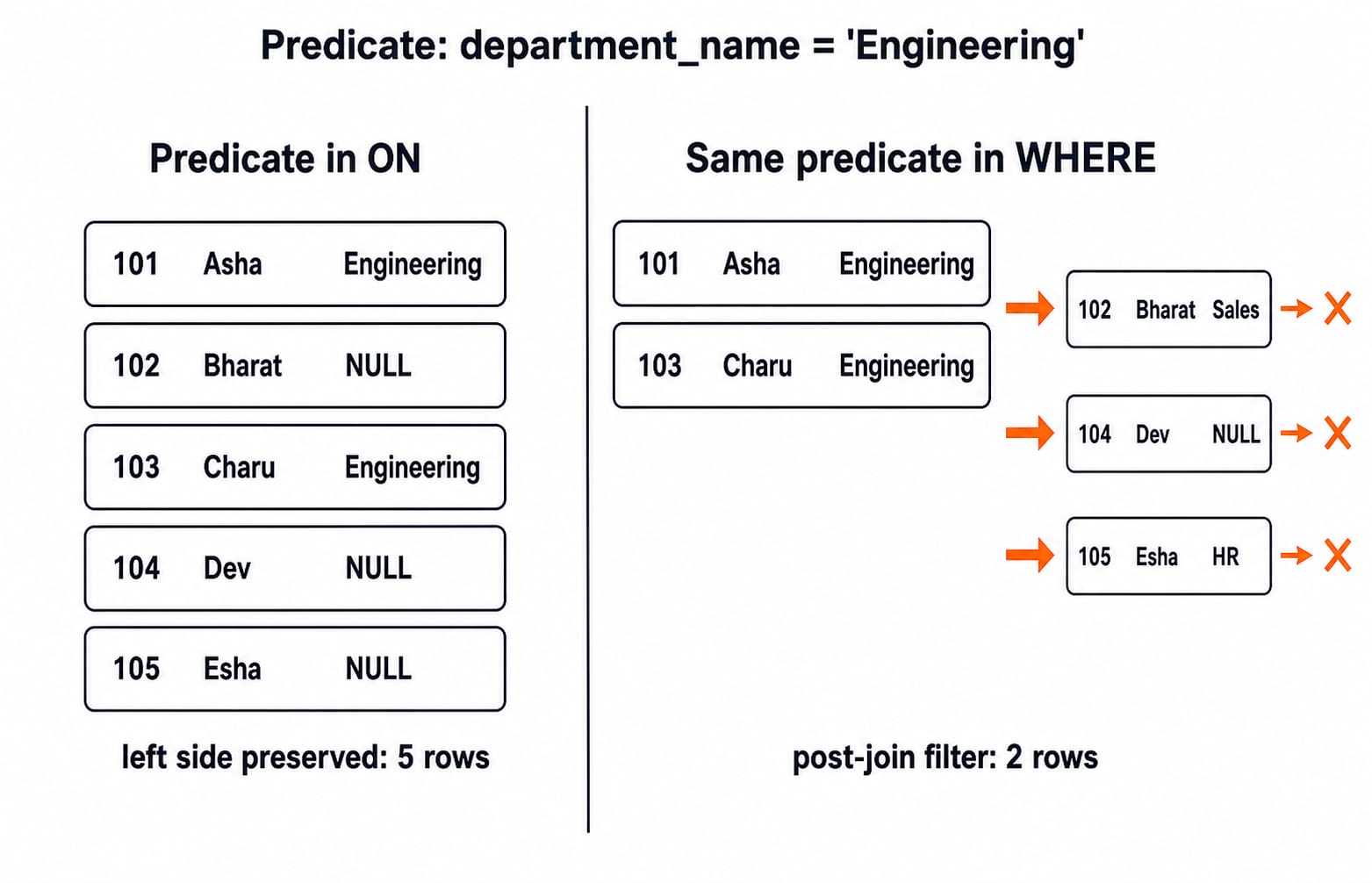

Query A keeps the Engineering predicate inside ON:

SELECT e.employee_id, e.employee_name, d.department_name
FROM employees AS e
LEFT JOIN departments AS d
    ON e.department_id = d.department_id
   AND d.department_name = 'Engineering'
ORDER BY e.employee_id;

All five employee IDs survive. Asha and Charu show Engineering; Bharat, Dev, and Esha show NULL. Query B moves the predicate to WHERE:

SELECT e.employee_id, e.employee_name, d.department_name
FROM employees AS e
LEFT JOIN departments AS d
    ON e.department_id = d.department_id
WHERE d.department_name = 'Engineering'
ORDER BY e.employee_id;

Only 101 | Asha | Engineering and 103 | Charu | Engineering survive. The post-join filter rejects Sales, HR, and the NULL-extended row.

Common mistakes follow a clear cause and repair:

• A missing ON can create every left-right pair. Match the intended keys explicitly.

• Joining on department_name can mis-match repeated or mutable labels. Join stable IDs.

• WHERE d.department_id IS NOT NULL after LEFT removes unmatched rows, effectively keeping matches only.

• NULL = NULL is not a successful equality match. Use IS NULL to test missing values.

Department 10 appears once but matches Asha and Charu, so every join retaining matches produces two Engineering rows. Do not add DISTINCT merely to hide this expected one-to-many result.

Exercises and the way assessments test OUTER JOINs

Stable assessment formats ask you to predict rows, choose a preserved side, count one-to-many matches, find unmatched records with IS NULL, or compare predicates in ON and WHERE.

Solve these before reading the answers:

1. Run employees LEFT JOIN departments with WHERE d.department_id IS NULL.

2. Run departments LEFT JOIN employees with WHERE e.employee_id IS NULL.

3. Predict the RIGHT join row count.

4. Insert (106, 'Farah', 40) and predict the FULL join count.

Answers

1. 104 | Dev is the only unmatched employee.

2. 40 | Legal is the only unmatched department.

3. The answer is 5: four matched combinations + unmatched Legal.

4. The answer remains 6: Farah creates a fifth matched employee row, the former Legal-only row disappears, and Dev remains left-only. So 5 matched + 1 left-only = 6.

KnowledgeGate offers over 20 practice and previous-year questions on SQL Join Operations (Inner & Outer). Continue with SQL Query MCQs: 12 Solved (SELECT, Joins, Subqueries) or the CS Fundamentals for Placements by Sanchit Sir course.

OUTER JOINs in SQL: short version and next step

INNER keeps matches. LEFT adds left-only rows, RIGHT adds right-only rows, and FULL adds both. Missing-partner columns become NULL. A predicate in WHERE can remove the rows an outer join preserved. Here Dev 104 is left-only and Legal 40 is right-only.

Retype the setup, predict the six FULL rows, then verify them. Add Farah (106, 'Farah', 40) and explain why the count stays 6 before rewriting RIGHT as LEFT.

For a wider semester route across core CS subjects, continue with ZERO TO HERO. When choosing an outer join, ask one practical question: Which table's unmatched rows must survive? The answer selects LEFT, RIGHT, or FULL.
