The velocity V of a vehicle along a straight line is measured in m/s and…

GATE · 2016 · MA · General Aptitude

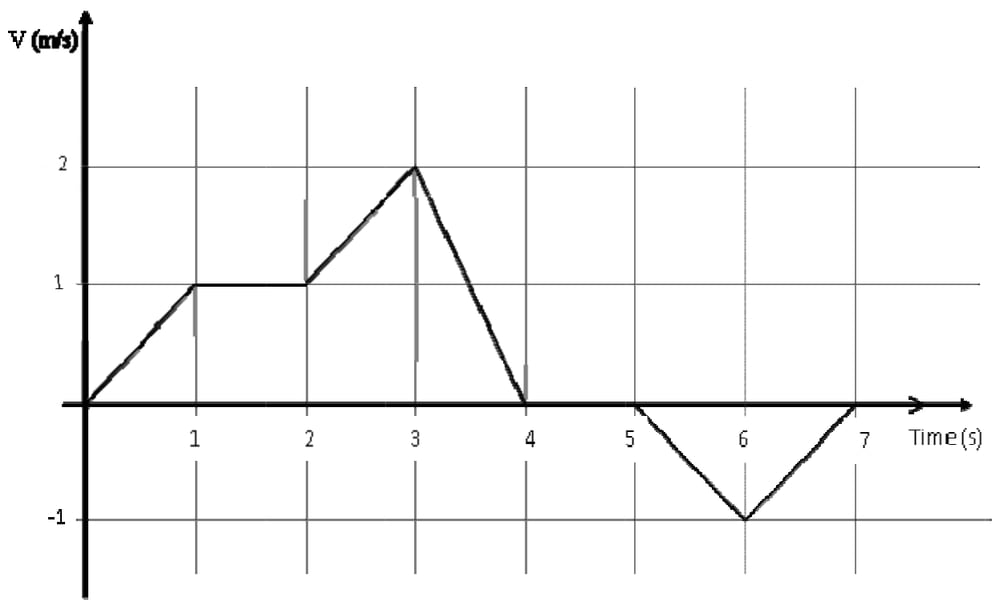

The velocity V of a vehicle along a straight line is measured in m/s and plotted as shown with

respect to time in seconds. At the end of the 7 seconds, how much will the odometer reading

increase by (in m)?

Velocity versus time plot from zero to seven seconds with positive and negative segments
  1. A.

    0

  2. B.

    3

  3. C.

    4

  4. D.

    5
