Activation records and stack frames: the exact distinction

An activation is one execution of a function. Its activation record, or stack frame, holds that execution's runtime data. Recursion creates one record per call although every call runs the same compiled body.

Common fields are parameters, a return-value location, return address, dynamic link or saved caller FP, optional static link, saved registers, locals and temporaries. Parameters carry inputs; temporaries hold compiler-generated values during execution. Not every language or ABI stacks every field, and order is not universal.

Code and state are different. One copy of f can have frames for f(4), f(3) and f(2), each with its own parameter and return point. Use the GATE CS Exam Preparation Courses and Test Series catalog and Compiler Design map for context.

What a call sequence and return sequence actually do

Assume a simplified downward-growing stack. SP marks its top; FP gives fields a stable reference while SP moves. The caller evaluates arguments and records where execution continues. The callee preserves state, establishes its frame, allocates locals and starts the body.

1. The caller computes arguments.

2. Control transfers with a return address.

3. The callee saves the caller's frame reference and registers.

4. It allocates locals and executes.

5. It places the result in its agreed location.

6. Its epilogue releases locals, restores state and uses the return address.

A return address names an instruction such as main:after_f; a dynamic link identifies the caller's record. One restores control flow, the other frame state. LIFO means the newest active frame normally finishes first, which is why calls and recursion fit a stack.

Worked call trace: main -> f(3) -> g(5,3)

g(a, b):
    t = a * b
    return t - 1

f(x):
    y = x + 2
    return g(y, x)

main:
    ans = f(3)

Pop only g. Suspended f resumes at f:after_g, receives and returns 14, then is popped. main resumes at main:after_f and stores ans=14.

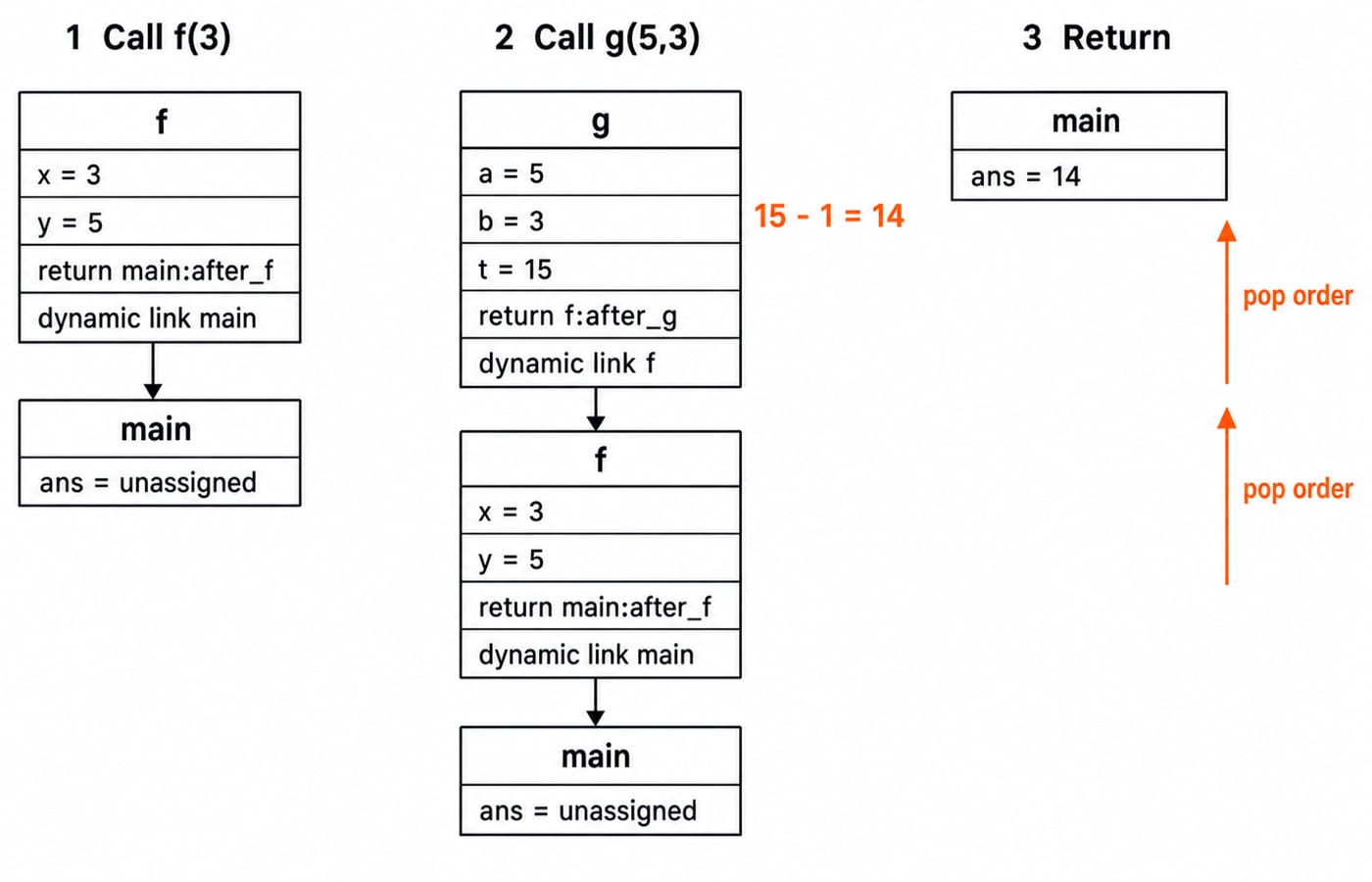

While g runs, stack order from top is g, f, main. Then it is f, main, and finally main. The frames preserve f's x=3, y=5 while g uses separate values.

Worked frame-size and address calculation

Take an illustrative 64-bit, stack-passed convention. Immediately before the callee frame is built, SP=0x1000, and the stack grows towards lower addresses. Allocate two 8-byte parameters (16 bytes), an 8-byte return address, an 8-byte dynamic link or saved FP, two saved 8-byte registers (16 bytes), a local area rounded to 16 bytes, and one 8-byte temporary area.

Calculate every term:

16 + 8 + 8 + 16 + 16 + 8 = 72 bytes = 0x48 bytes
new SP = 0x1000 - 0x48 = 0x0FB8
FP = 0x0FE0

From low to high:

As a cross-check, a starts at FP+16 because 0x0FE0+0x10=0x0FF0. Parameter b starts at FP+24 because 0x0FE0+0x18=0x0FF8. The 72-byte result and these offsets are correct only for this stated teaching convention, not for a named real ISA or ABI.

Recursion means many records for one function

Activation records sit inside a broader run-time model of memory regions, allocation, displays and parameter passing, developed in Run-Time Environment in Compiler Design. Frame construction, address arithmetic, call order and return state need a closer trace. With n <= 1 as the base condition, fact(4) creates four records; the linked run-time-environment example uses n == 0, so its same-named call creates five.

Define fact(n) = 1 when n <= 1; otherwise, fact(n) = n * fact(n-1). Calling fact(4) creates four simultaneously active fact records with parameter values 4, 3, 2 and 1. Each non-base call waits at its own multiplication.

The unwind keeps those values separate:

fact(1) = 1
fact(2) = 2 * 1 = 2
fact(3) = 3 * 2 = 6
fact(4) = 4 * 6 = 24

One shared local n would fail because the waiting calls still need their distinct values 4, 3 and 2. If this teaching model assigns 32 bytes to each fact frame, four frames require 4*32=128 bytes. If a separate main frame uses 16 bytes, total active stack storage at the deepest point is 128+16=144 bytes.

Do not report the depth as three. The base-case call fact(1) is a real activation and has its own record, so the four parameter values prove that the recursion depth here is four.

Dynamic links versus static links in nested procedures

In an explicitly lexically scoped teaching language, P has x=10. Inside P, Q defines siblings R and S. R returns x+1. S(k) declares local x=99 and invokes procedure argument k. Then Q calls S(R), so S invokes R while active.

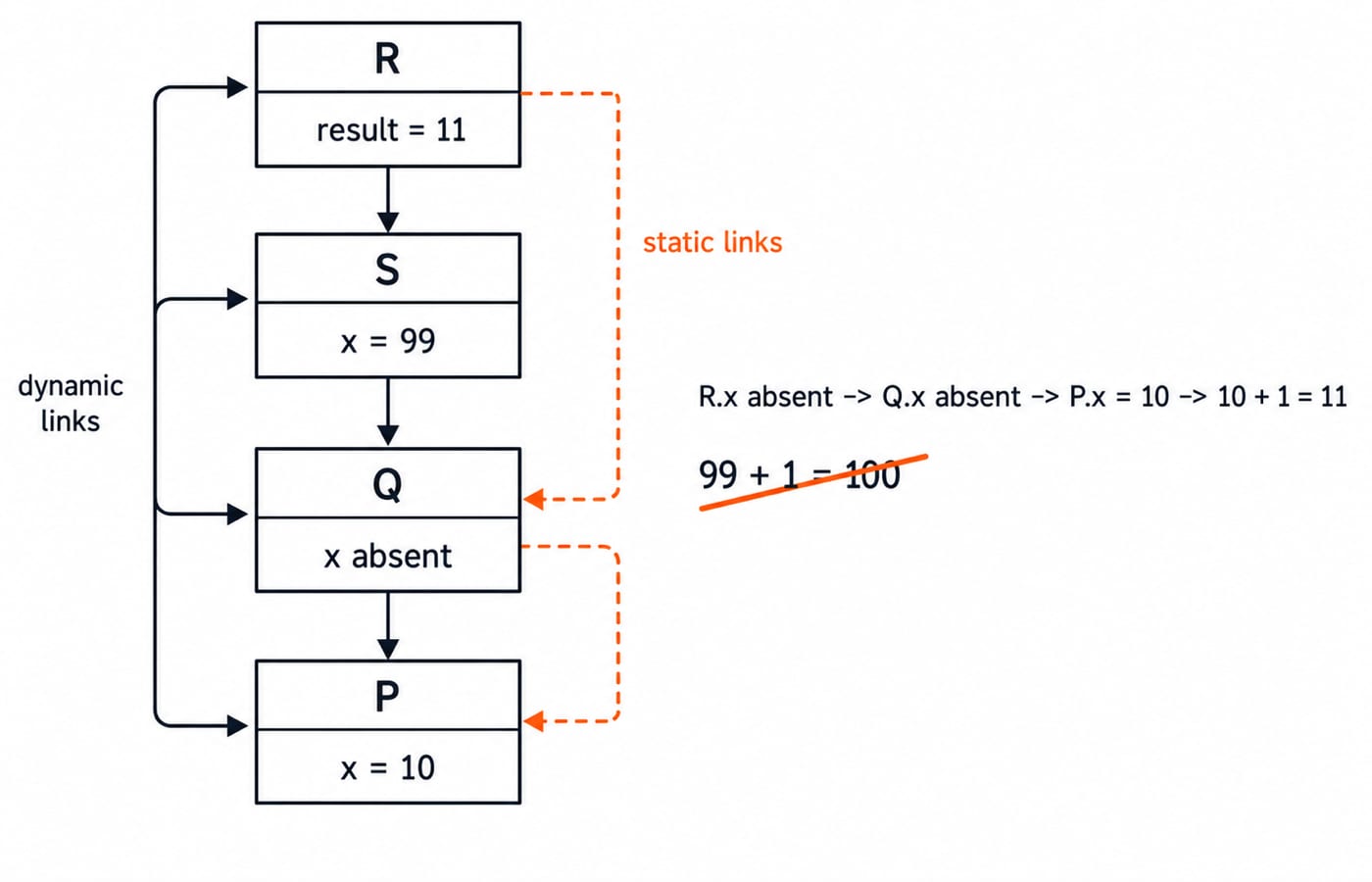

When R runs, the dynamic call chain is R -> S -> Q -> P, which answers who called whom. Its static or lexical chain is R -> Q -> P because Q, not S, is R's lexical parent.

Resolve x lexically: R has no local x; neither does Q; P supplies x=10. Therefore R returns 10+1=11, not 100. It cannot use S's x=99 because S is a dynamic caller, not a lexical ancestor.

Static links are one technique for non-local access. Displays or closure environments can enforce the same rule, so a literal static-link field is not universal.

Exam-style checks and the traps that change the answer

Questions ask you to identify fields, distinguish links, count records, calculate SP, or trace calls.

Use these rapid checks:

1. At the deepest point of main -> A -> B -> C, there are 4 active records, including main.

2. Six recursive calls at 40 bytes each require 6*40=240 bytes for those recursive frames.

3. With downward growth, SP=4096 and a 48-byte frame give SP=4096-48=4048.

4. A link to the lexical parent is static; a link to the runtime caller is dynamic.

Repair traps. One function is not one frame, so count calls. Frame size is not just locals, so include every field and padding. A return address is not a frame pointer, so separate code and frame locations. Dynamic order is not lexical scope, so follow the required link.

The KnowledgeGate practice bank currently has more than 20 activation-record questions for applying these checks.

The short version and the next practice step

Use a five-step solver: write the call order; draw one frame per active call; fill parameters and locals; label return, dynamic and any static links separately; then pop in reverse order while carrying each result back.

Remember the anchors: g(5,3) returns 14; the 72-byte frame moves SP from 0x1000 to 0x0FB8; fact(4) creates four frames and returns 24; nested R follows its static chain to P.x=10 and returns 11.
