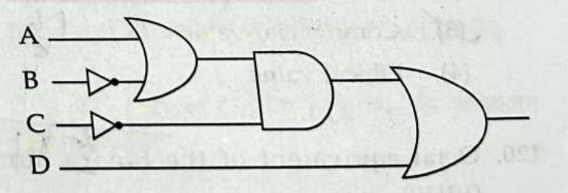

Identify the Boolean expression from the given options which is equivalent to the Logic Circuit Diagram.
- A.
(A + B′) · C′ + D
- B.
A · B′ + C′ · D
- C.
A + B′ · C′ + D
- D.
(A · B′ + C′) · D
Attempted by 441 students.
Show answer & explanation
Correct answer: A
Correct Boolean expression: (A + B′) · C′ + D Step 1: The first gate is an OR with inputs A and the inverted B, producing A + B′.
