The logic function f(X,Y) realized by the given circuit is

GATE · 2018 · EC · Electronics and Communication Engineering

The logic function f(X,Y) realized by the given circuit is

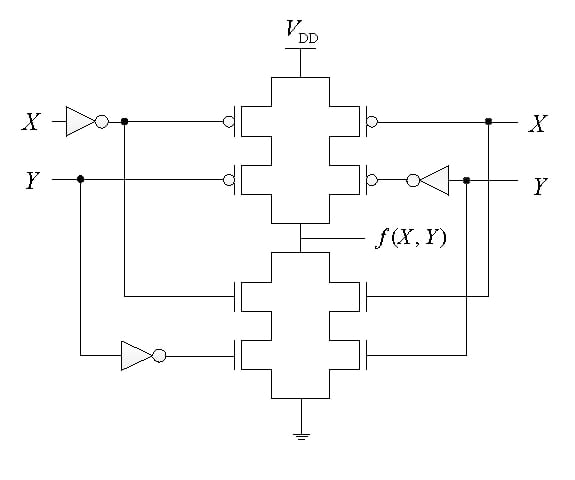

Complementary transistor network from VDD to ground: X and Y feed inverters and cross-connected transistor gates; output f(X,Y) is between the pull-up and pull-down stacks.
  1. A.

    NOR

  2. B.

    AND

  3. C.

    NAND

  4. D.

    XOR
