In the circuit shown below, X and Y are digital inputs, and Z is a digital output. The equivalent circuit is a

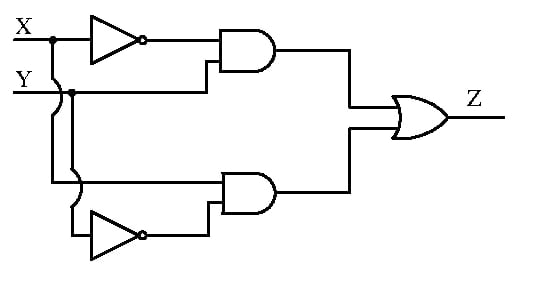

Logic circuit with upper AND inputs X inverted and Y; lower AND inputs X and Y inverted; their outputs feed OR output Z.
  1. A.

    NAND gate

  2. B.

    NOR gate

  3. C.

    XOR gate

  4. D.

    XNOR gate
