Consider the following circuit composed of XOR gates and non-inverting buffers.

GATECS2009Q47

The non-inverting buffers have delays d1 = 2 ns and d2 = 4 ns as shown in the figure. Both XOR gates and all wires have zero delay. Assume that all gate inputs, outputs and wires are stable at logic level 0 at time 0. If the following waveform is applied at input A, how many transition(s) (change of logic levels) occur(s) at B during the interval from 0 to 10 ns ?

GATECS2009Q47B

  1. A.

    1

  2. B.

    2

  3. C.

    3

  4. D.

    4

Attempted by 31 students.

Show answer & explanation

Correct answer: D

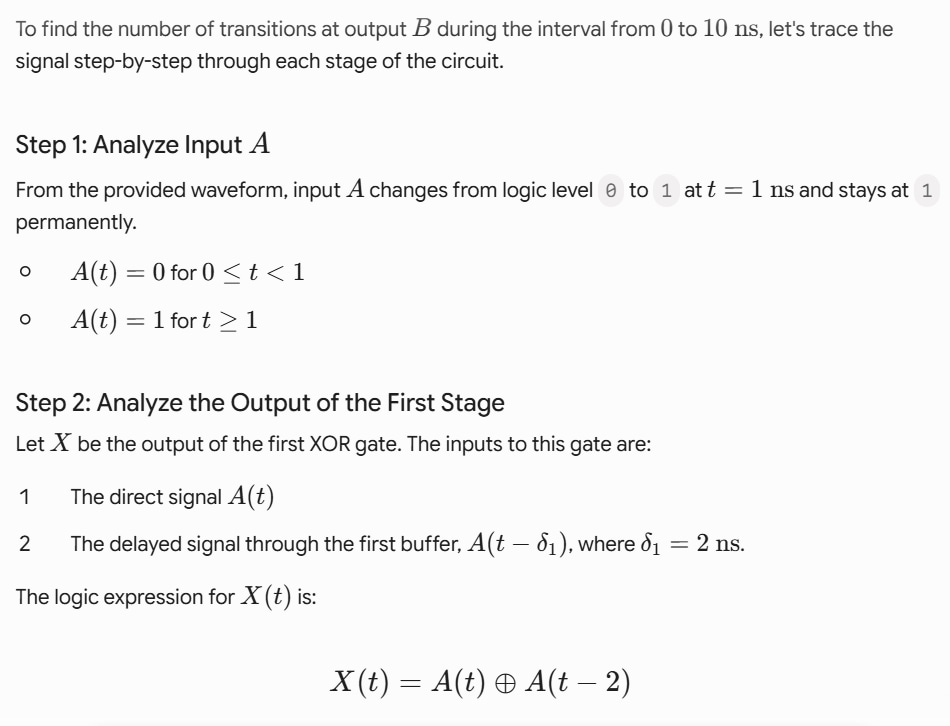

The circuit consists of XOR gates and non-inverting buffers with delays d1 = 2 ns and d2 = 4 ns. The XOR gates and wires have zero delay. At time 0, all inputs are stable at logic level 0. The input A waveform transitions at specific times (e.g., 2 ns, 4 ns, etc.). The output B is affected by the XOR gate and buffer delays. Each transition in A propagates through the circuit, causing transitions at B after delay. By analyzing the timing of input changes and their propagation through the XOR gates and buffers, we find that transitions occur at B at 2 ns, 4 ns, 6 ns, and 8 ns. Thus, there are 4 transitions at B between 0 and 10 ns.




Time Interval

X(t)

X(t−4)

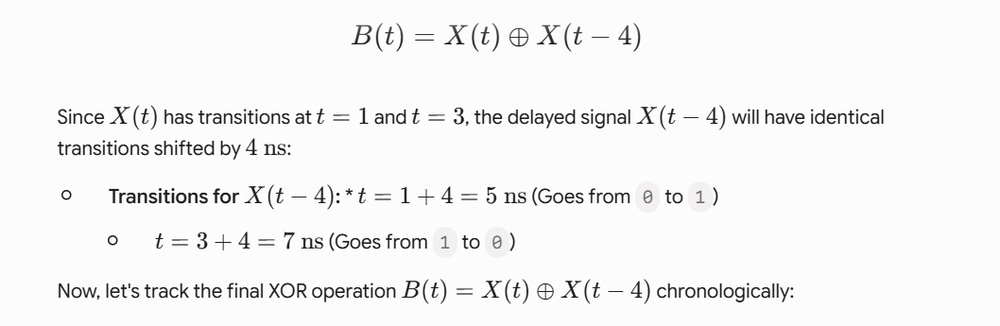

B(t)=X(t)⊕X(t−4)

0 <= t < 1

0

0

0

1 <= t < 3

1

0

1

3 <= t < 5

0

0

0

5 <= t < 7

0

1

1

t >= 7

0

0

0

Conclusion

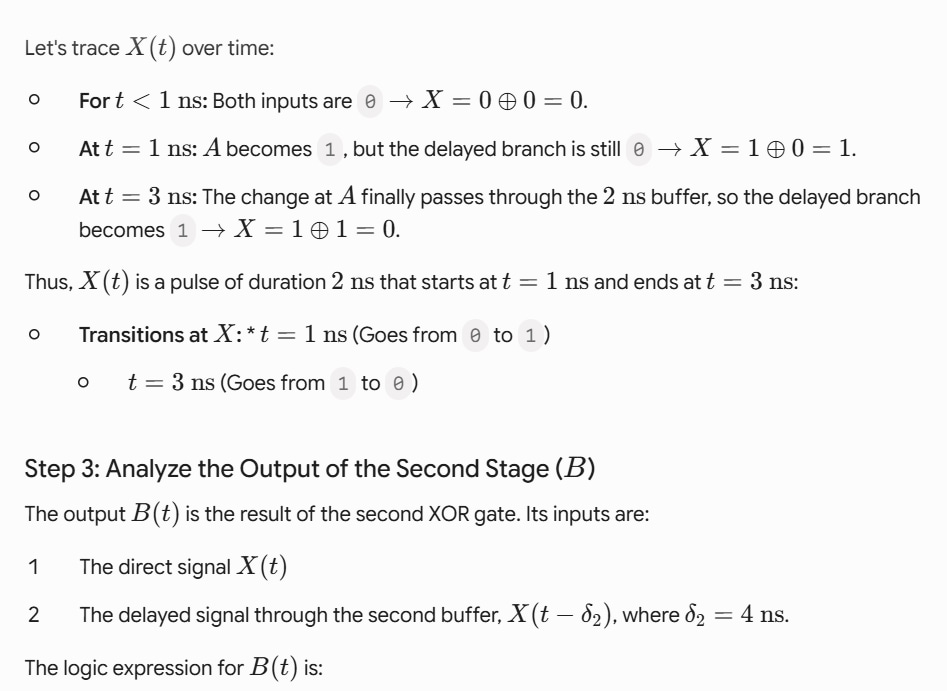

By observing the values of B(t), we can list every time it changes state:

  1. At t = 1 ns, B transitions from 0 to 1.

  2. At t = 3 ns, B transitions from 1 to 0.

  3. At t = 5 ns, B transitions from 0 to 1.

  4. At t = 7 ns, B transitions from 1 to 0.

All 4 transitions occur well within the requested 0 to 10 ns interval.

Final Answer:

There are 4 transitions that occur at B during the interval from 0 to 10 ns.
