GATE · 2007 · IT

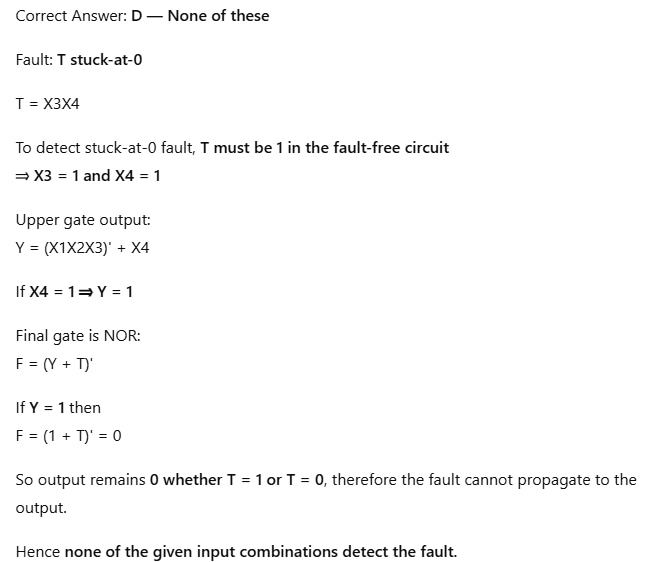

The line T in the following figure is permanently connected to the ground.
Which of the following inputs (X1 X2 X3 X4) will detect the fault ?
- A.
0000
- B.
0111
- C.
1111
- D.
None of these
Attempted by 160 students.
