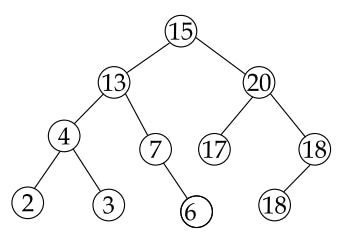

The inorder traversal of the following tree is
2015
The inorder traversal of the following tree is
- A.
2 3 4 6 7 13 15 17 18 18 20
- B.
20 18 18 17 15 13 7 6 4 3 2
- C.
15 13 20 4 7 17 18 2 3 6 18
- D.
2 4 3 13 7 6 15 17 20 18 18
Attempted by 532 students.
Show answer & explanation
Correct answer: D
Inorder traversal rule: visit the left subtree, then the node, then the right subtree.
Apply this to the tree:
Left subtree (root 13):
Inorder(4) = 2 4 3
Visit node 13 -> 13
Inorder(7) = 7 6
Left-subtree result: 2 4 3 13 7 6
Visit root: 15
Right subtree (root 20):
Inorder(17) = 17
Visit node 20 -> 20
Inorder(18) = 18 18
Final inorder traversal: 2 4 3 13 7 6 15 17 20 18 18
