Parser basics: from tokens to a syntax tree

A parser is the syntax-analysis stage. It consumes the token stream from lexical analysis and checks whether a context-free grammar can generate it. In id + id $, id and + are terminals, E, E', and T are non-terminals, and $ is the end marker, not a source-language token.

The grammar states legal structure. A derivation lists production applications, a parse tree records their hierarchy, and the algorithm chooses a production or reports an error. The parser neither rescans characters nor assigns runtime values.

Top-down parsing expands from the start symbol until the leaves match the input, constructing a leftmost derivation here. Bottom-up parsing reduces the input towards the start symbol.

Recursive descent, predictive parsing and grammar conditions

A recursive-descent parser has one procedure per non-terminal and may backtrack. A predictive parser selects a production using one lookahead token, so the terms are not synonymous.

This expression grammar breaks a naive top-down procedure:

E -> E + T | T
T -> id

Choosing E -> E + T makes parseE() recurse before consuming a token. Remove the left recursion and number the result:

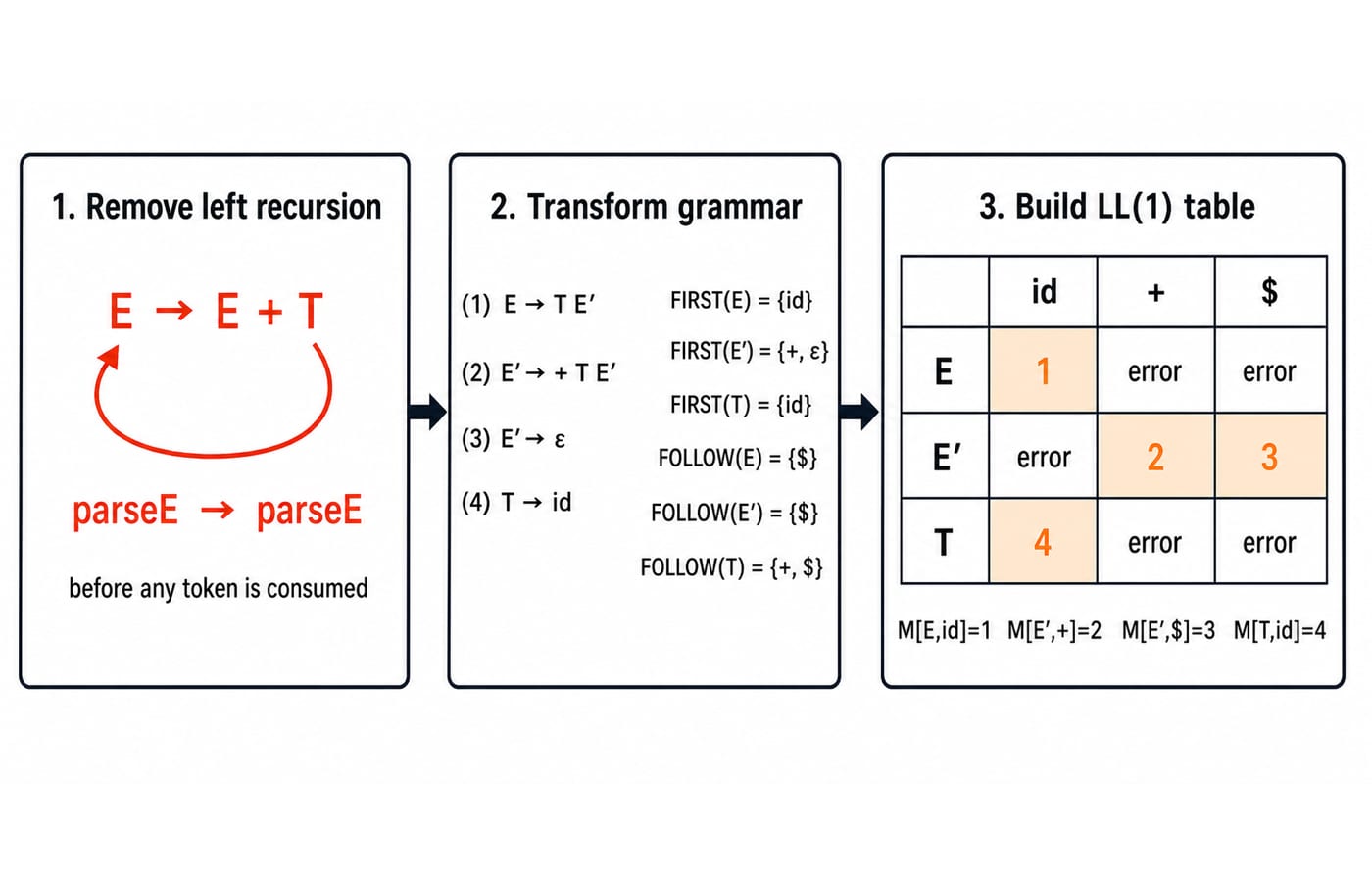

(1) E  -> T E'
(2) E' -> + T E'
(3) E' -> epsilon
(4) T  -> id

This grammar generates id (+ id)*, including id, id + id, and id + id + id.

Left factoring repairs another problem. Factor S -> id ( E ) | id = E as S -> id R and R -> ( E ) | = E. Left-recursion removal prevents looping; factoring delays the choice. Neither guarantees LL(1), which still needs a conflict-free table.

FIRST and FOLLOW for the worked grammar

From T -> id, FIRST(T) = {id}. Since E -> T E', FIRST(E) = {id}. The two alternatives for E' give FIRST(E') = {+, epsilon}.

Put $ in FOLLOW(E) because E is the start symbol. Since E' ends production (1), copy FOLLOW(E) to FOLLOW(E'). For T in E -> T E', add FIRST(E') - {epsilon} = {+}. Because E' can vanish, also add FOLLOW(E) = {$}.

FIRST(E)   = {id}
FIRST(E')  = {+, epsilon}
FIRST(T)   = {id}
FOLLOW(E)  = {$}
FOLLOW(E') = {$}
FOLLOW(T)  = {+, $}

The larger grammar in First and Follow in Compiler Design: Solved Examples demonstrates fixed-point propagation across nullable chains. In this grammar, epsilon belongs to FIRST, while FOLLOW(E') tells the table when to select production (3).

LL(1) table construction, cell by cell

For A -> alpha, place the production under each non-epsilon terminal in FIRST(alpha). If alpha can derive epsilon, also use every symbol in FOLLOW(A). One production per cell is deterministic; multiple productions form a conflict, so that grammar form is not LL(1). With only id, +, and $, the table exposes the entire chain from left-recursion repair to an acceptance trace and a rejection cell.

M[E,id]=1 comes from FIRST(T E')={id}. The leading + gives M[E',+]=2. Since $ is in FOLLOW(E'), epsilon gives M[E',$]=3. FIRST(id)={id} gives M[T,id]=4. No cell has two productions, so the grammar is LL(1).

Every LL(1) grammar is unambiguous. A non-LL(1) grammar is not automatically ambiguous or impossible to parse another way.

Parse id + id $ from the stack to acceptance

Write the stack top at the right and start with $ E. Pop a selected non-terminal and push its right-hand side in reverse. A terminal match pops and advances; epsilon pushes and consumes nothing.

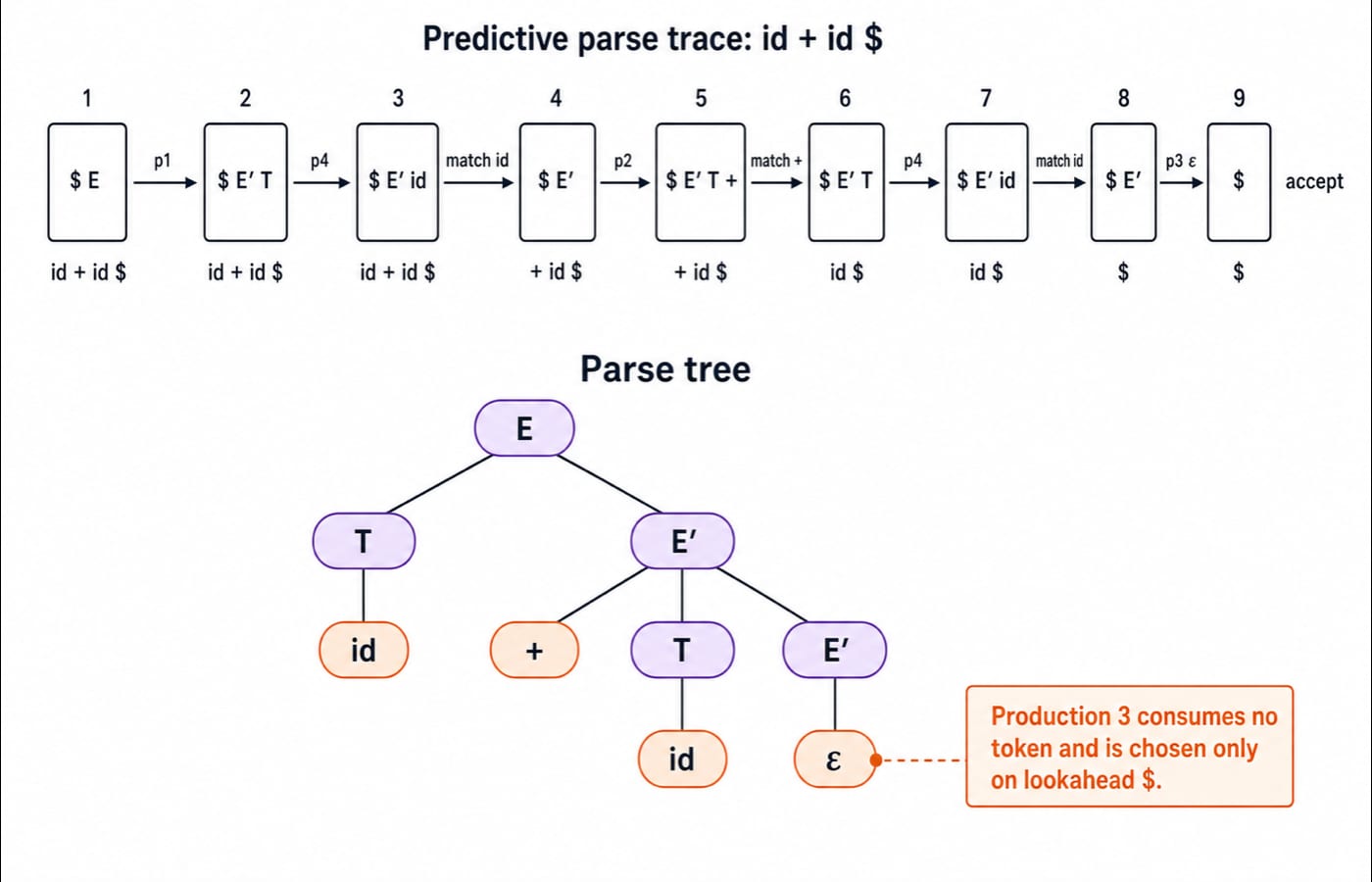

The leftmost derivation is E => T E' => id E' => id + T E' => id + id E' => id + id. The tree leaves are id, +, id, epsilon. Epsilon is not an input token; $ remains the end marker.

Top-down parsing rejection and common traps

For id + + id $, the steps through the first id and + are unchanged. Stack $ E' T then faces input + id $. Its top is T, but M[T,+]=error, so reject at the second +. Never delete it or choose T -> id against the table.

Verify grammar repairs with id, id + id, and id + id + id. Failure here only means another grammar or parsing method may be needed.

How practice questions test top-down parsing

Typical practice tasks ask you to identify a top-down parser or leftmost derivation, repair a grammar, compute sets, fill a cell, locate a conflict, trace a string, or find the first error cell. Each task tests a distinct decision: grammar suitability, set propagation, table determinism, stack order, or rejection.

Rapid top-down parsing checks test FIRST/FOLLOW calculations, table entries, stack order, and rejection.

1. FIRST(E')={+,epsilon} because its alternatives start with + or vanish.

2. FOLLOW(T)={+,$} because E' may begin with + or vanish at the end of E.

3. M[E',$]=3 because production (3) is epsilon and $ follows E'.

4. Production (2) is selected on + because its right-hand side begins with +.

5. After expanding E -> T E', stack $ E' T has T on top.

6. id + + id $ fails in M[T,+] because T can begin only with id.

Normalise the grammar, complete FIRST, stabilise FOLLOW, fill the table, check for multiple productions in any cell, and only then trace the input.

Top-down parsing: the short version and next step

Recall the chain: tokens -> grammar repair -> FIRST/FOLLOW -> LL(1) table -> stack trace -> accept or error. Here its decisive entries are M[E,id]=1, M[T,id]=4, M[E',+]=2, and M[E',$]=3.

As a retrieval exercise, trace id $. The sequence is p1, p4, match id, p3, accept; after matching id, lookahead $ selects E' -> epsilon. In contrast, + id $ fails immediately because M[E,+]=error.
