What is the objective of Line Clipping in computer graphics? Explain the three…

1. Introduction to Line Clipping

Line clipping is the process of removing portions of line segments that lie outside a defined user-viewing area, called the Clip Window. Instead of the GPU wasting resources trying to render pixels that the user cannot see, clipping "trims" the lines exactly at the window boundaries.

1. The Three Fundamental Cases

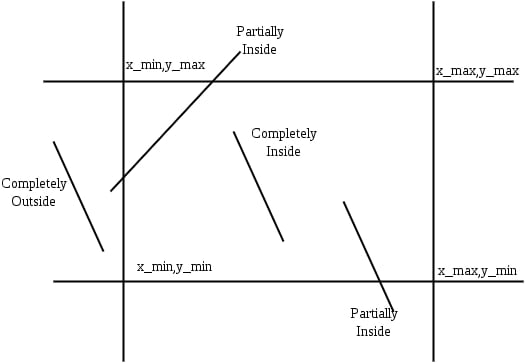

When a line segment P1P2 is compared against a window, it will always fall into one of these three categories:

• Case 1: Trivial Acceptance (Completely Inside)

  • Condition: Both endpoints of the line (P1 and P2) lie within the window boundaries.

  • Action: The entire line is saved and displayed as it is.

  • Logic: In Cohen-Sutherland, this is identified when the bitwise OR of the outcodes of both points is 0000.

• Case 2: Trivial Rejection (Completely Outside)

  • Condition: Both endpoints lie outside the window in a way that the line cannot possibly cross the window (e.g., both are above the top boundary).

  • Action: The entire line is discarded.

  • Logic: This occurs when the bitwise AND of the outcodes of both points is not 0000.

• Case 3: Clipping Candidate (Partially Inside / Outside)

  • Condition: The line is neither trivially accepted nor trivially rejected. One point might be inside and one outside, or both might be outside but the line passes through the window.

  • Action: The algorithm must calculate the intersection points with the window boundaries. The outside portions are discarded, and the inside portion is kept.

1. Mathematical Visibility Logic

To determine visibility, we check each point (x, y) against:

• XW_min <= x <= XW_max

• YW_min <= y <= YW_max
