ProGen Technologies, a software development company, plans to establish a backbone network to connect its four development centres located in Bengaluru, Hyderabad, Gurugram, and Kolkata. Each branch already has its own Local Area Network (LAN) based on a Star Topology. The company wants reliable inter-city connectivity, secure communication, and efficient network management. Based on the given scenario, answer the following questions:
(A) Identify the type of network (LAN / MAN / PAN / WAN) required to connect all the branches located in different cities.
(B) Suggest a suitable wired communication medium that can be used to connect all the branches over long distances.
(C) State any one advantage of using a Router instead of a Switch for connecting devices or networks across different branches.
(D) Name a network security system (software, hardware, or both) that monitors and controls incoming and outgoing network traffic based on predefined security rules to protect networks from unauthorized access and malicious activities.
Attempted by 68 students.
Show answer & explanation

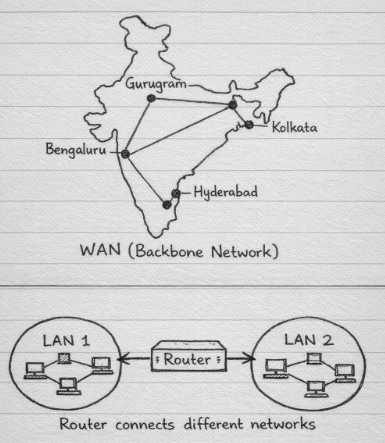

(A) Type of Network:
WAN (Wide Area Network) is required to connect branches in different cities.
It connects geographically distant locations and supports backbone communication.
Example: Internet, banking networks like SBI.
(B) Wired Communication Medium:
Optical Fiber Cable is suitable for long-distance communication.
It offers high bandwidth, low signal loss, and is immune to interference.
Example: Undersea cables, telecom backbone lines.
(C) Advantage of Router over Switch:
A router connects different networks, while a switch works within a LAN.
It uses IP addressing and selects the best path.
Example: Home Wi-Fi router.
(D) Network Security System:
Firewall monitors and controls traffic based on rules.
It prevents unauthorized access.
Example: Windows Defender Firewall.
