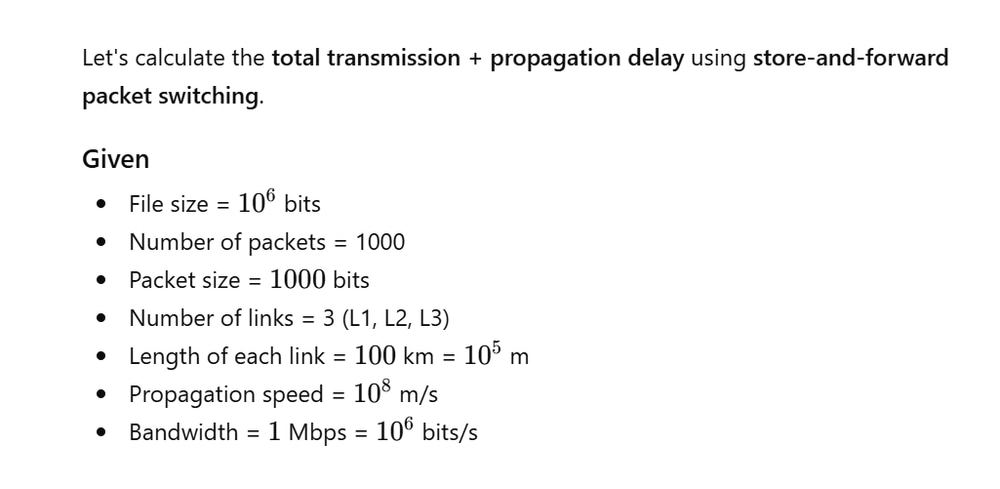

Consider a source computer(S) transmitting a file of size 106 bits to a destination computer(D) over a network of two routers (R1 and R2) and three links (L1, L2 and L3). L1 connects S to R1; L2 connects R1 to R2; and L3 connects R2 to D. Let each link be of length 100 km. Assume signals travel over each link at a speed of 108 meters per second. Assume that the link bandwidth on each link is 1 Mbps.

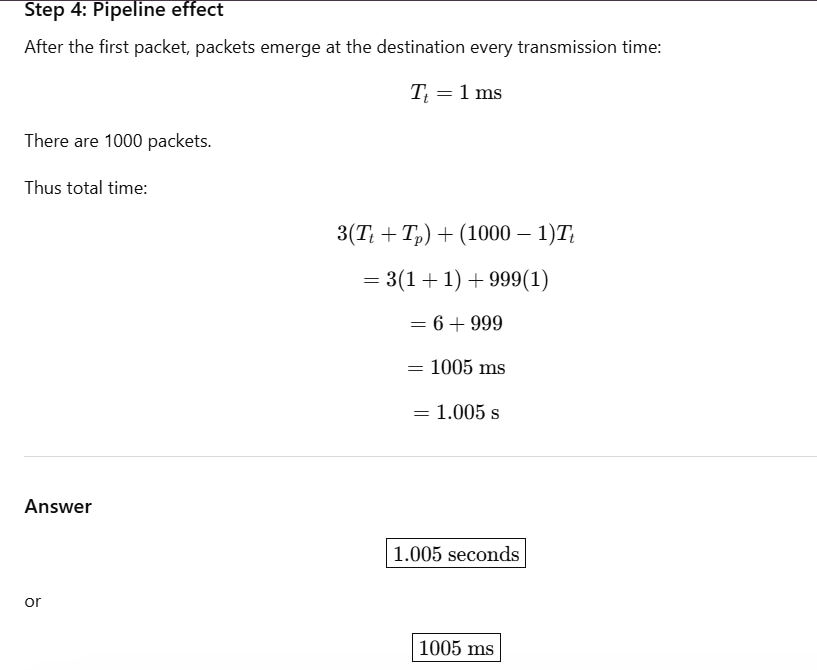

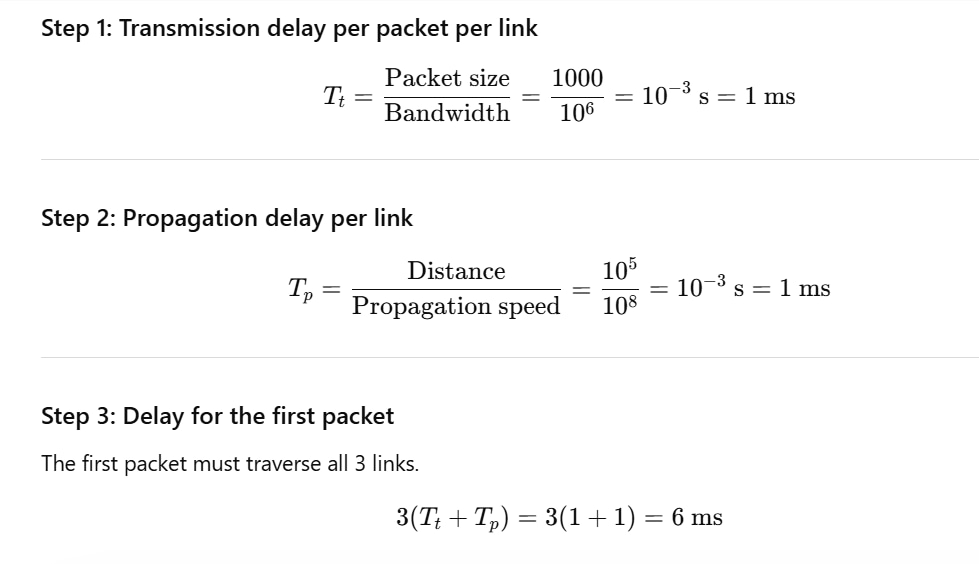

Let the file be broken down into 1000 packets each of size 1000 bits. Find the total sum of transmission and propagation delays in transmitting the file from S to D.
