To obtain figure (b) from figure (a) in a binary system, which modulation…
2021

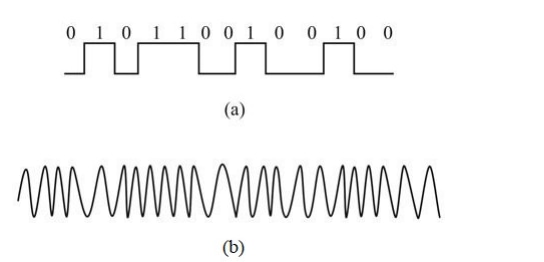

To obtain figure (b) from figure (a) in a binary system, which modulation technique is applied?
- A.
Amplitude modulation
- B.
Frequency modulation
- C.
Phase modulation
- D.
Quadrature phase shift keying
Attempted by 598 students.
Show answer & explanation
Correct answer: B
In Frequency Modulation process, the frequency of a carrier wave is modified in accordance with the binary data from the baseband signal:
0 (Low Bit): Represented by a lower frequency sine wave (longer wavelengths).
1 (High Bit): Represented by a higher frequency sine wave (shorter, more compressed wavelengths).
Constant Amplitude: Unlike Amplitude Modulation, the height of the waves remains uniform throughout the signal.
