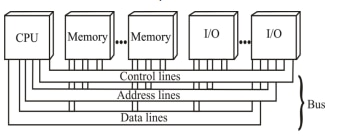

The following diagram shows a
2013

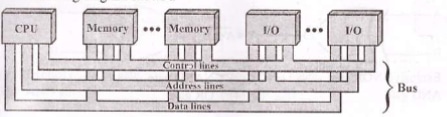

The following diagram shows a
- A.
Bus interconnection scheme
- B.
Memory interconnection scheme
- C.
I/O
- D.
Throughput
Attempted by 613 students.
Show answer & explanation
Correct answer: A
Answer and explanation: The diagram shows a system bus connecting the CPU, memory, and I/O devices using shared data, address, and control lines. This is a bus interconnection scheme. Data lines — carry the actual data being transferred between components.
