A color model is shown in the figure with color codes: Yellow (Y), Magenta…
2025

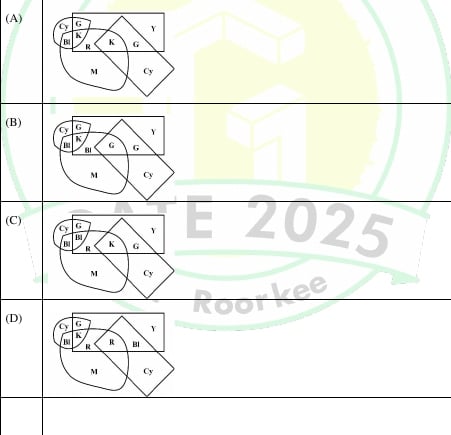

A color model is shown in the figure with color codes: Yellow (Y), Magenta (M), Cyan (Cy), Red (R), Blue (Bl), Green (G), and Black (K). Which one of the following options displays the color codes that are consistent with the color model?
Answer: A. Figure A — The figure depicts the subtractive color model built on the primaries Yellow (Y), Magenta (M), and Cyan (Cy). In this model, overlapping two primaries…
- A.
Figure A
- B.
Figure B
- C.
Figure C
- D.
Figure D
Attempted by 5 students.
Show answer & explanation
Correct answer: A
The figure depicts the subtractive color model built on the primaries Yellow (Y), Magenta (M), and Cyan (Cy). In this model, overlapping two primaries produces a secondary color: Y with M gives Red (R), Y with Cy gives Green (G), and M with Cy gives Blue (Bl), while the region common to all three primaries is Black (K). Checking each candidate figure region by region against these mixing rules, Figure A is the one whose codes match the model in every region.
