Match the following.
2017

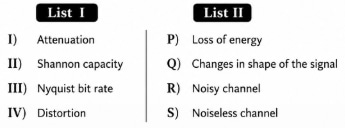

Match the following.
- A.
I – P, II – Q, III – R, IV – S
- B.
I – P, II – R, III – S, IV – Q
- C.
I – S, II – R, III – Q, IV – P
- D.
I – Q, II – P, III – S, IV – R
Attempted by 17 students.
Show answer & explanation
Correct answer: B
The correct option is B (I-P, II-R, III-S, IV-Q). Attenuation means loss of energy (I-P). Shannon capacity determines the data rate for a noisy channel (II-R). Nyquist bit rate applies to a noiseless channel (III-S). Distortion refers to changes in the signal's shape (IV-Q).
