The output of the following combinational circuit is F. The value of F is :
2017

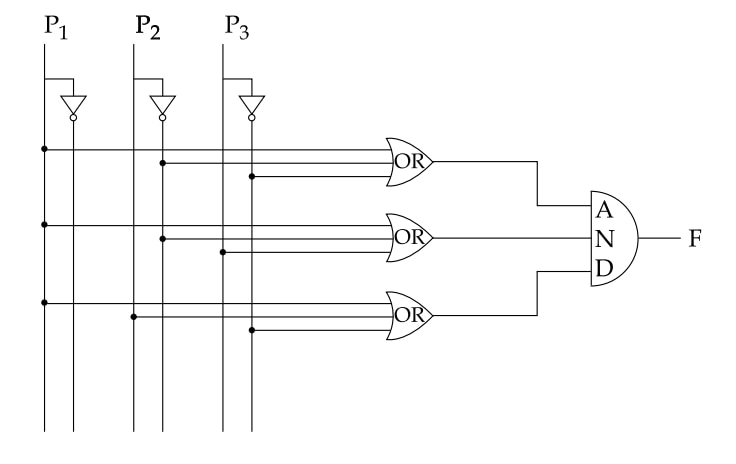

The output of the following combinational circuit is F.
The value of F is :
- A.
𝑃1+𝑃2′𝑃3
- B.
𝑃1+𝑃2′𝑃3′
- C.
𝑃1+𝑃2𝑃3′
- D.
𝑃1′+𝑃2𝑃3
Attempted by 139 students.

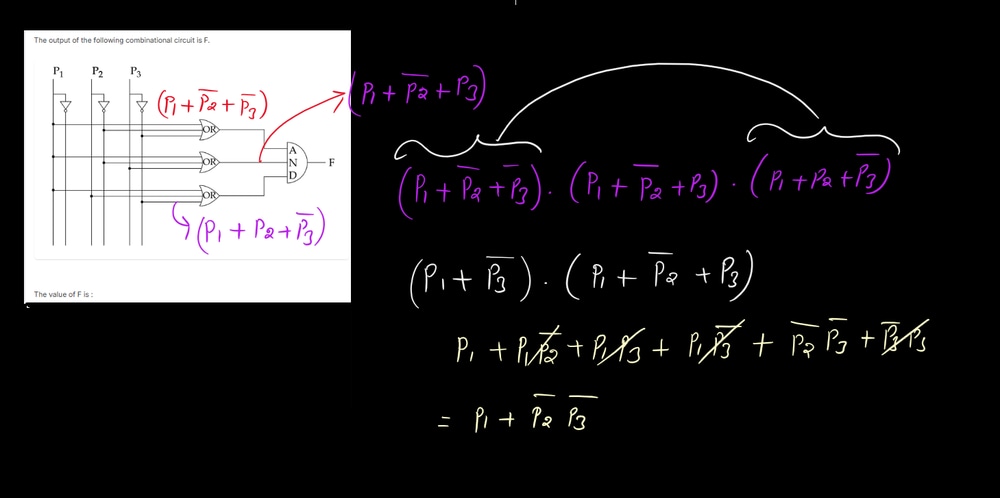

Show answer & explanation
Correct answer: B
