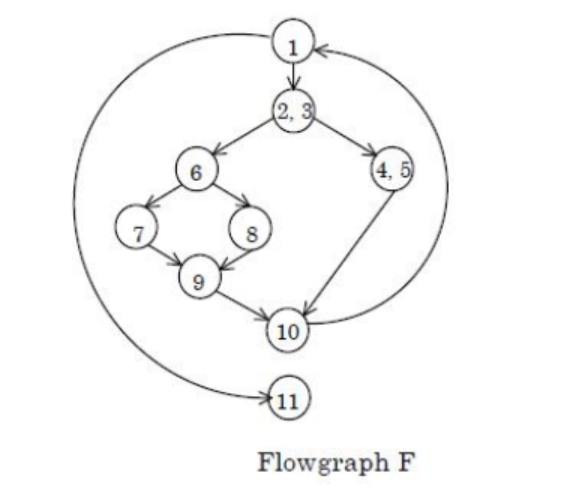

A flow graph 𝐹 with entry node (1) and exit node (11) is shown below: What is…

Answer: 4 — the cyclomatic complexity of the flowgraph is 4.

Method (simple and commonly used): count the number of decision points (nodes with multiple outgoing edges) and add 1 for a single connected graph.

• Top branching node (the node labeled "2,3"): it splits execution to the left subgraph and the right subgraph. (counts as 1 decision)

• Branch inside the left-hand subgraph (node 6): it splits to two paths that later reconverge. (counts as 1 decision)

• The loop/return that sends control back toward the entry (the lower part that creates a loop): it provides an additional independent path. (counts as 1 decision)

Computation: number of decision points (3) + 1 = 4.

Alternative check (formula): cyclomatic complexity M = E − N + 2P (for a single connected graph P = 1). Applying that to this flowgraph also yields M = 4.
