In the architecture of 8085 microprocessor match the following : Code :
2017

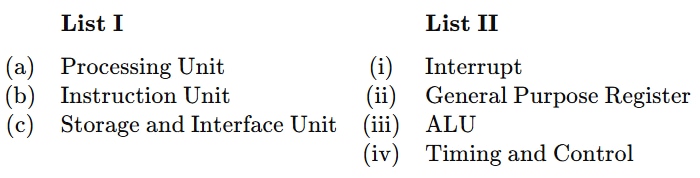

In the architecture of 8085 microprocessor match the following :
Code :
- A.
(a)-(iv) (b)-(i) (c)-(ii)
- B.
(a)-(iii) (b)-(iv) (c)-(ii)
- C.
(a)-(ii) (b)-(iii) (c)-(i)
- D.
(a)-(i) (b)-(ii) (c)-(iv)
Attempted by 53 students.
Show answer & explanation
Correct answer: B
Answer: Processing unit -> Arithmetic and Logic Unit (ALU); Instruction unit -> Timing and Control; Storage and Interface unit -> General-purpose Registers.
Processing unit: Contains the Arithmetic and Logic Unit (ALU) which performs arithmetic and logical operations required by instructions.
Instruction unit: Handles instruction fetch, decode, sequencing and generates control and timing signals, so it corresponds to the timing and control function.
Storage and Interface unit: Provides registers and interfaces to memory and I/O, so it corresponds to the general-purpose registers and storage elements.
Therefore the correct mapping is: Processing unit -> ALU; Instruction unit -> Timing and Control; Storage and Interface unit -> General-purpose Registers.
