Match the terms in List I with the options given in List II
2018

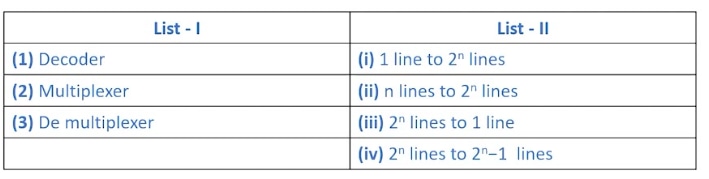

Match the terms in List I with the options given in List II
- A.
ii,i,iii
- B.
ii,iii,i
- C.
ii,i,iv
- D.
iv,ii,i
Attempted by 133 students.
Show answer & explanation
Correct answer: B
A decoder converts n input lines into 2^n unique output lines, matching item (ii). A multiplexer selects one of 2^n input lines to send to a single output, matching item (iii). A de-multiplexer routes a single input line to one of 2^n output lines, matching item (i). Thus, the correct sequence is ii, iii, i.
