Consider the following relations X(S, Si, C) and Y(S, P, D) . Find the number…

Key idea: a left outer join returns all rows from the left relation X and matches rows from Y when the join condition holds; if no match exists, Y's attributes are NULL.

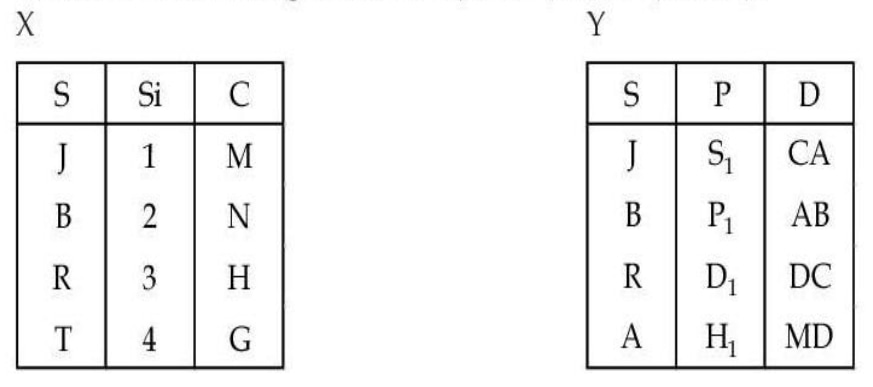

• Rows in X (S, Si, C): J,1,M | B,2,N | R,3,H | T,4,G

• Rows in Y (S, P, D): J,S1,CA | B,P1,AB | R,D1,DC | A,H1,MD

• Match each row of X to rows of Y on S:

• J from X matches J in Y → result tuple: J, 1, M, S1, CA

• B from X matches B in Y → result tuple: B, 2, N, P1, AB

• R from X matches R in Y → result tuple: R, 3, H, D1, DC

• T from X has no matching S in Y → result tuple: T, 4, G, NULL, NULL

Total number of tuples in X ⟕_{x.s = y.s} Y: 4
