The Boolean function F(X,Y) realized by the given circuit is

GATE · 2018 · IN · Instrumentation Engineering

The Boolean function F(X,Y) realized by the given circuit is

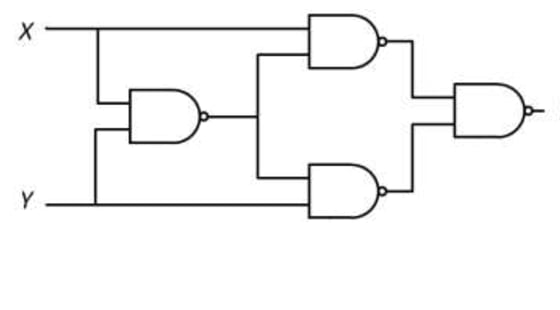

Four NAND gates: the first combines X and Y; its output feeds one NAND with X and another with Y; those two outputs feed the final NAND producing F.
  1. A.

    X̄Y + XȲ

  2. B.

    X̄Ȳ + XY

  3. C.

    X + Y

  4. D.

    X̄ · Ȳ
