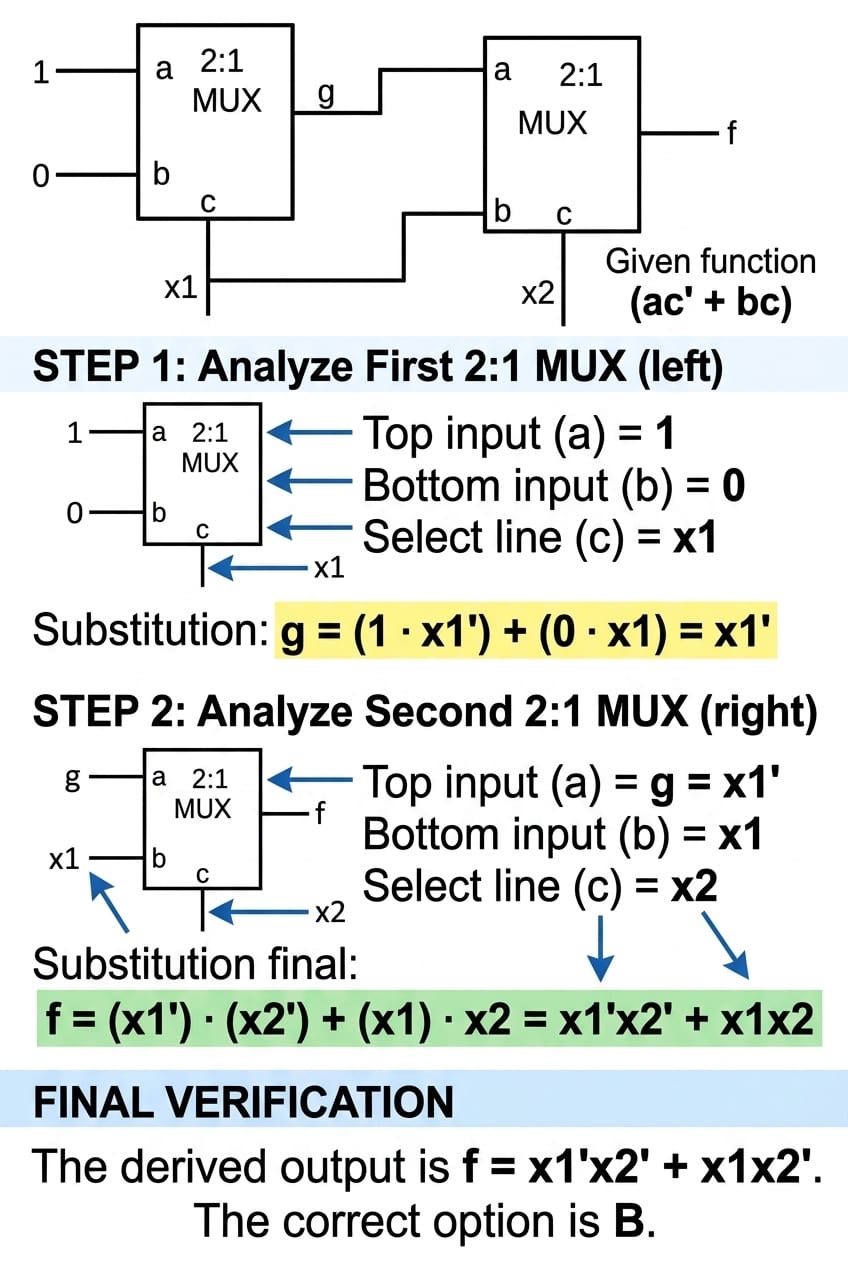

Consider the circuit shown below. The output of a 2:1 MUX is given by the function (ac′+bc), Which of the following is true?

1. A.

   f=x1′​+x2​

2. B.

   f=x1​x2​+x1′​x2′​

3. C.

   f=x1​x2​+x1′​x2

4. D.

   f=x1​+x2′​

Attempted by 57 students.

Show answer & explanation

Correct answer: B
