Given the following Karnaugh map, which one of the following represents the…
2001

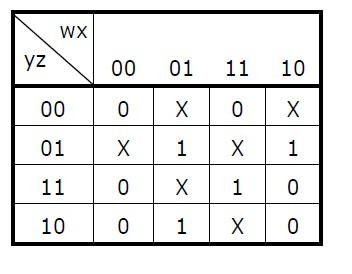

Given the following Karnaugh map, which one of the following represents the minimal Sum-Of-Products of the map?
- A.
xy + y'z
- B.
wx'y' + xy + xz
- C.
w'x + y'z + xy
- D.
xz + y
Attempted by 58 students.
Show answer & explanation
Correct answer: A

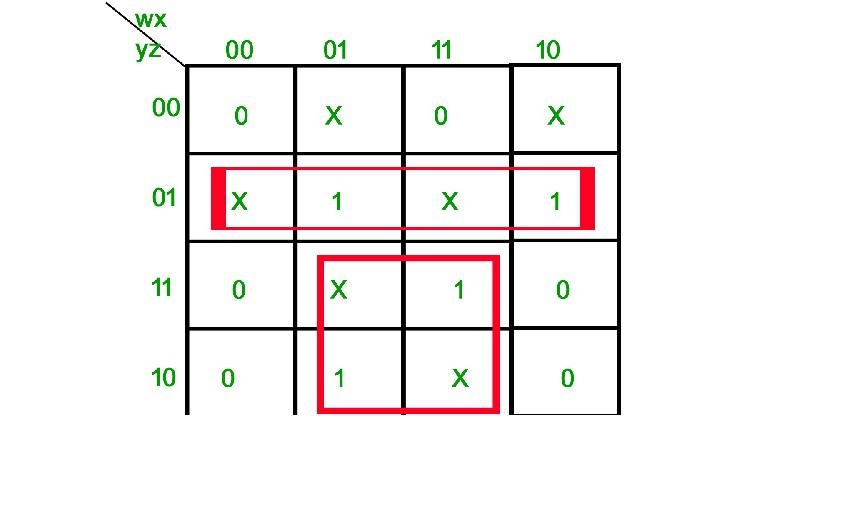

The minimal Sum-Of-Products for the Karnaugh map involves grouping adjacent 1s. Based on analysis, terms include w'x and xy.
