Which function does NOT implement the Karnaugh map given below? wz w’z’ w’z wz…
GATE · Computer Science · 2000

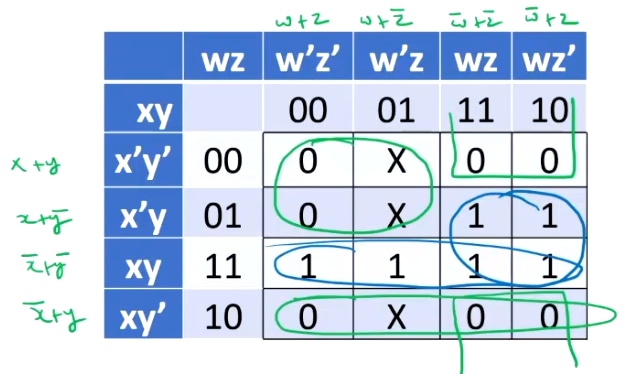

Which function does NOT implement the Karnaugh map given below?
| wz | w’z’ | w’z | wz | wz’ |
xy |
| 00 | 01 | 11 | 10 |
x’y’ | 00 | 0 | X | 0 | 0 |
x’y | 01 | 0 | X | 1 | 1 |
xy | 11 | 1 | 1 | 1 | 1 |
xy’ | 10 | 0 | X | 0 | 0 |
- A.
(W + X) Y
- B.
XY + YW
- C.
(W + X) (W’ + Y) (X’ + Y)
- D.
none of the above
