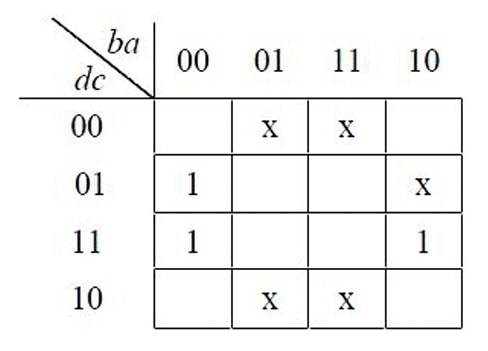

Consider the Karnaugh map given below, where \(X\) represents "don't care" and blank represents 0.
Assume for all inputs \(\left ( a,b,c,d \right )\), the respective complements \(\left ( \bar{a}, \bar{b}, \bar{c}, \bar{d} \right )\) are also available. The above logic is implemented using 2-input NOR gates only. The minimum number of gates required is ____________ .
Attempted by 146 students.
Show answer & explanation
Correct answer: 1
Final answer: 1 two-input NOR gate.
Reasoning and simplification:
Locate the 1s and don't-cares in the K-map and use don't-cares to form the largest group possible. The four-cell block formed by rows where c = 1 and columns where a = 0 contains the three required 1s plus a don't-care, so it is valid.
That 2×2 block corresponds to the product term a' c (a = 0 and c = 1).
Implementing a' c with only 2-input NOR gates is simple because complements of inputs are available. Use the identity: a' c = NOT(a OR c'). So a single 2-input NOR gate with inputs a and c' produces a' c directly.
Therefore the minimum number of 2-input NOR gates required is 1.
