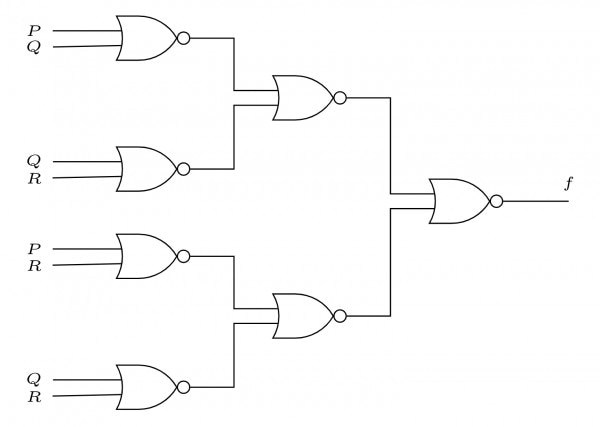

What is the Boolean expression for the output \(f\) of the combinational logic circuit of NOR gates given below?
- A.
\(\overline{Q+R}\) - B.
\(\overline{P+Q}\) - C.
\(\overline{P+R}\) - D.
\(\overline{P+Q+R}\)
Attempted by 199 students.
Show answer & explanation
Correct answer: A
Key idea: treat each NOR as an inverted OR and apply De Morgan to simplify.
Let A = not(P+Q), B = not(Q+R), C = not(P+R), D = not(Q+R).
The second-stage NOR outputs are E = not(A + B) and F = not(C + D). Using De Morgan, E = (P+Q)(Q+R) and F = (P+R)(Q+R).
Combine E and F: E + F = (Q+R)[(P+Q)+(P+R)] = (Q+R)(P+Q+R) = Q+R.
The final output is the NOR of E and F, so f = not(E + F) = not(Q+R).
Answer: f = not(Q+R).
