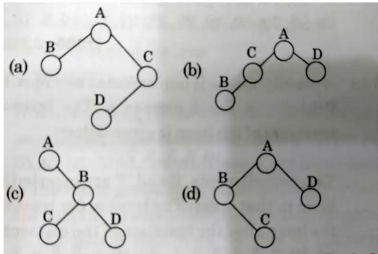

Which one of the following binary trees has its inorder and preorder…

To determine the correct binary tree, we reconstruct it from the given inorder and preorder traversals.

Step 1: In preorder traversal, the root is visited first. The preorder is ABCD, so A is the root.

Step 2: In inorder traversal, the left subtree is visited, then the root, then the right subtree. The inorder is BCAD, so B and C are in the left subtree of A, and D is in the right subtree.

Step 3: The left subtree of A has nodes B and C. In preorder, B comes before C, so B is the root of the left subtree.

Step 4: In inorder, B comes before C, so C is the right child of B.

Step 5: The right subtree of A has only D, so D is the right child of A.

The resulting tree structure matches option (a).
