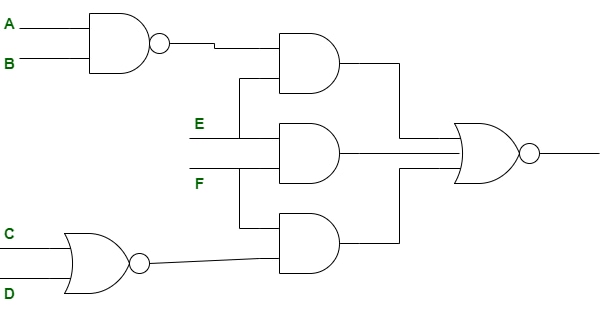

Consider the following circuit
The function by the network above is,
- A.
(AB)'E + EF + (CD)'F
- B.
(E' + ABF')(C + D + F')
- C.
((AB)' + E)(E' + F')(C + D + F')
- D.
(A + B)E' + (EF)' + CDF'
Attempted by 95 students.
Show answer & explanation
Correct answer: B
The circuit begins with a NAND gate outputting (AB)' and a NOR gate outputting (C+D)'. These signals combine with inputs E and F in three AND gates to produce terms (AB)'E, EF, and (C+D)'F.
The final gate is a NOR operation on these three terms, creating the expression ((AB)'E + EF + (C+D)'F)'. Applying De Morgan's laws simplifies this to (E' + ABF')(C + D + F').
