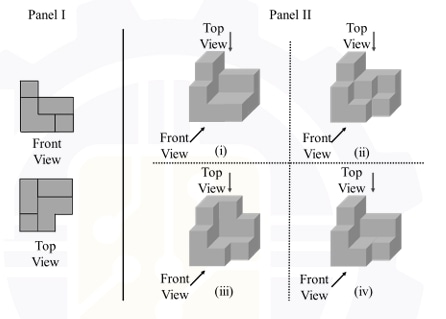

In Panel I of the figure below, the front view and top view of a structure are shown. Which one of the 3D structures shown in Panel II possesses the views shown in Panel I?
- A.
(i)
- B.
(ii)
- C.
(iii)
- D.
(iv)
Attempted by 41 students.
Show answer & explanation
Correct answer: D
Compare each candidate structure with the two projections in Panel I. The correct structure must match the L-shaped front view and also have the same footprint when viewed from the top. Options (i), (ii), and (iii) fail to match one of these two projections. Option (iv) matches both the front view and the top view, so it is the required 3D structure.
