Consider the following 2-3-4 tree (i.e., B-tree with a minimum degree of two)…
2003

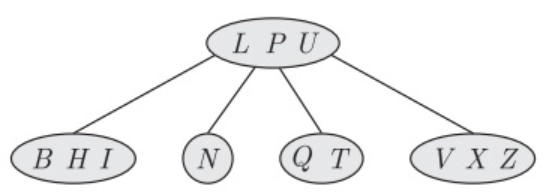

Consider the following 2-3-4 tree (i.e., B-tree with a minimum degree of two) in which each data item is a letter. The usual alphabetical ordering of letters is used in constructing the tree.

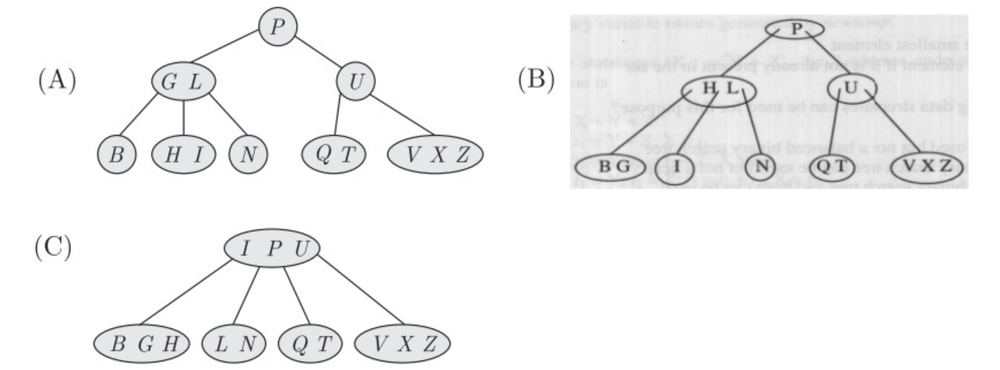

What is the result of inserting G in the above tree ?
- A.
A
- B.
B
- C.
C
- D.
None of the above
Attempted by 43 students.
Show answer & explanation
Correct answer: B
(B) is the correct answer.
Once we add G, the leaf node becomes B G H I, since we can have only 3 keys. The node has to split at G or H, and G or H will be added to parent node.
Since P is the parent node in options 1 and 2, it is evident the 3rd element i.e. H should be selected for splitting (because after adding any key from the leftmost child node, P becomes the 3rd element in the node).
Now parent node becomes H L P U, select P as for splitting, and you get option B.
Hence, answer is B.
