Data transmitted on a link uses the following 2D parity scheme for error…

2008

Data transmitted on a link uses the following 2D parity scheme for error detection:
Each sequence of 28 bits is arranged in a 4×7 matrix (rows r0 through r3, and columns d7 through d1) and is padded with a column d0 and row r4 of parity bits computed using the Even parity scheme. Each bit of column d0 (respectively, row r4) gives the parity of the corresponding row (respectively, column). These 40 bits are transmitted over the data link.

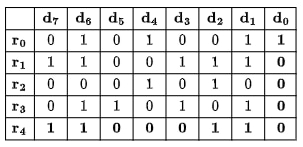

The table shows data received by a receiver and has n corrupted bits. What is the mini­mum possible value of n?

  1. A.

    1

  2. B.

    2

  3. C.

    3

  4. D.

    4
